Navvion Gamma
5 MWh containerized energy storage engineered for grid scale.
Navvion Gamma delivers a 5.015 MWh lithium iron phosphate (LFP) energy storage system designed for utility-scale reliability. It pairs high-density battery racks, integrated fire suppression, and liquid thermal management to keep projects stable, efficient, and ready for deployment.

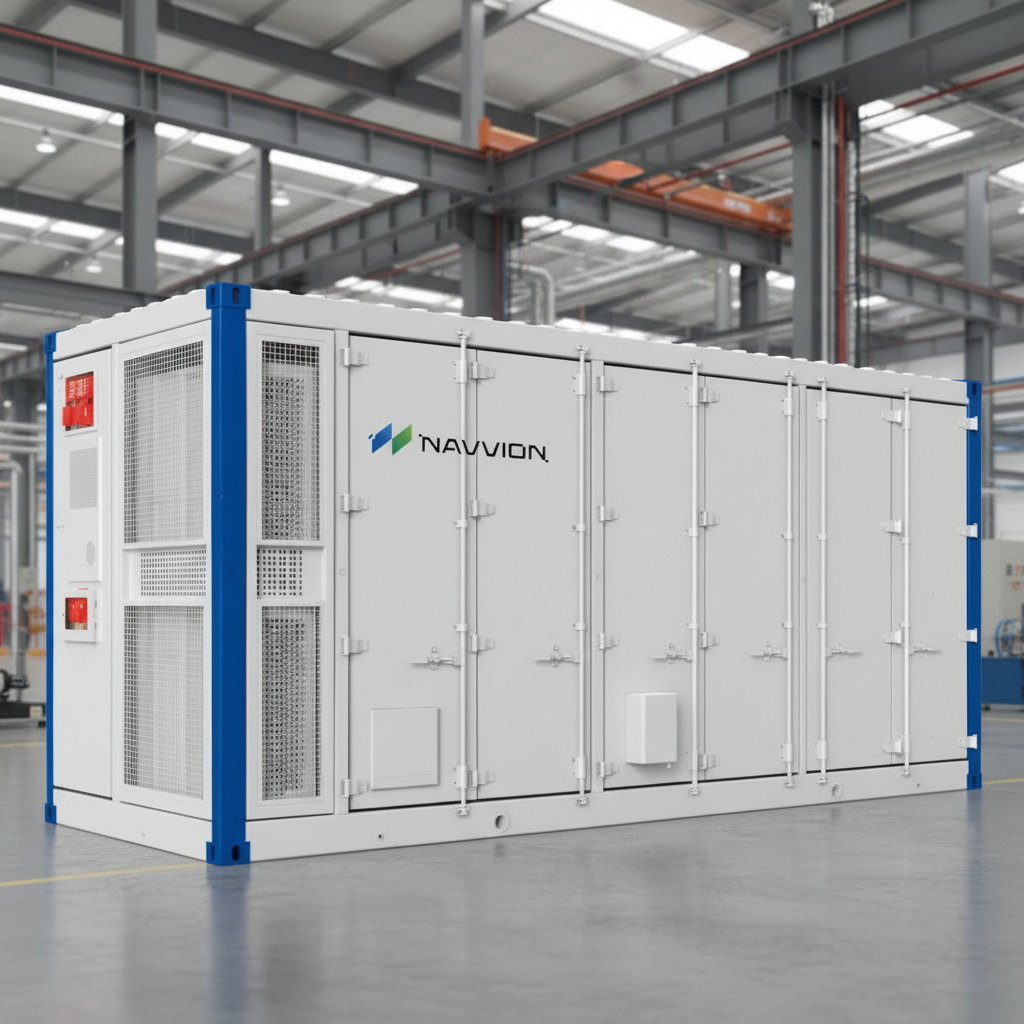

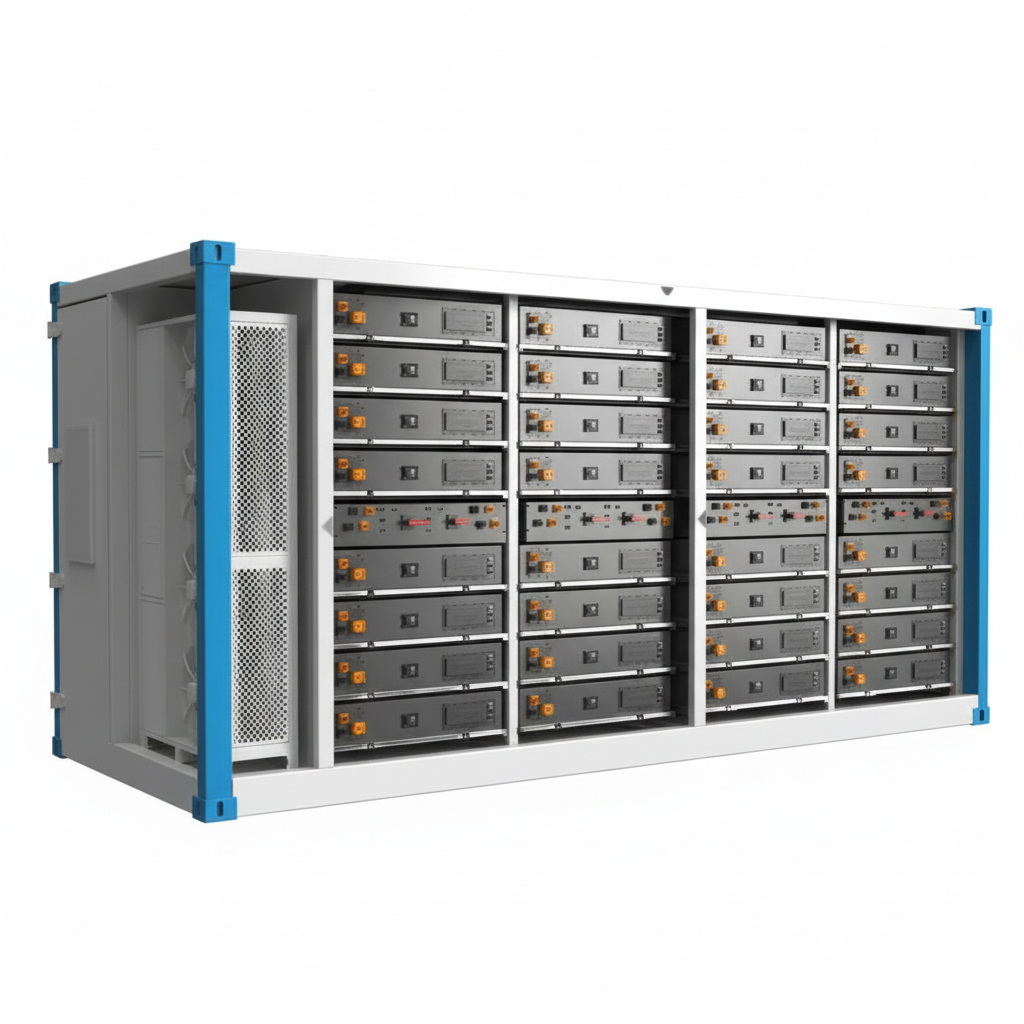

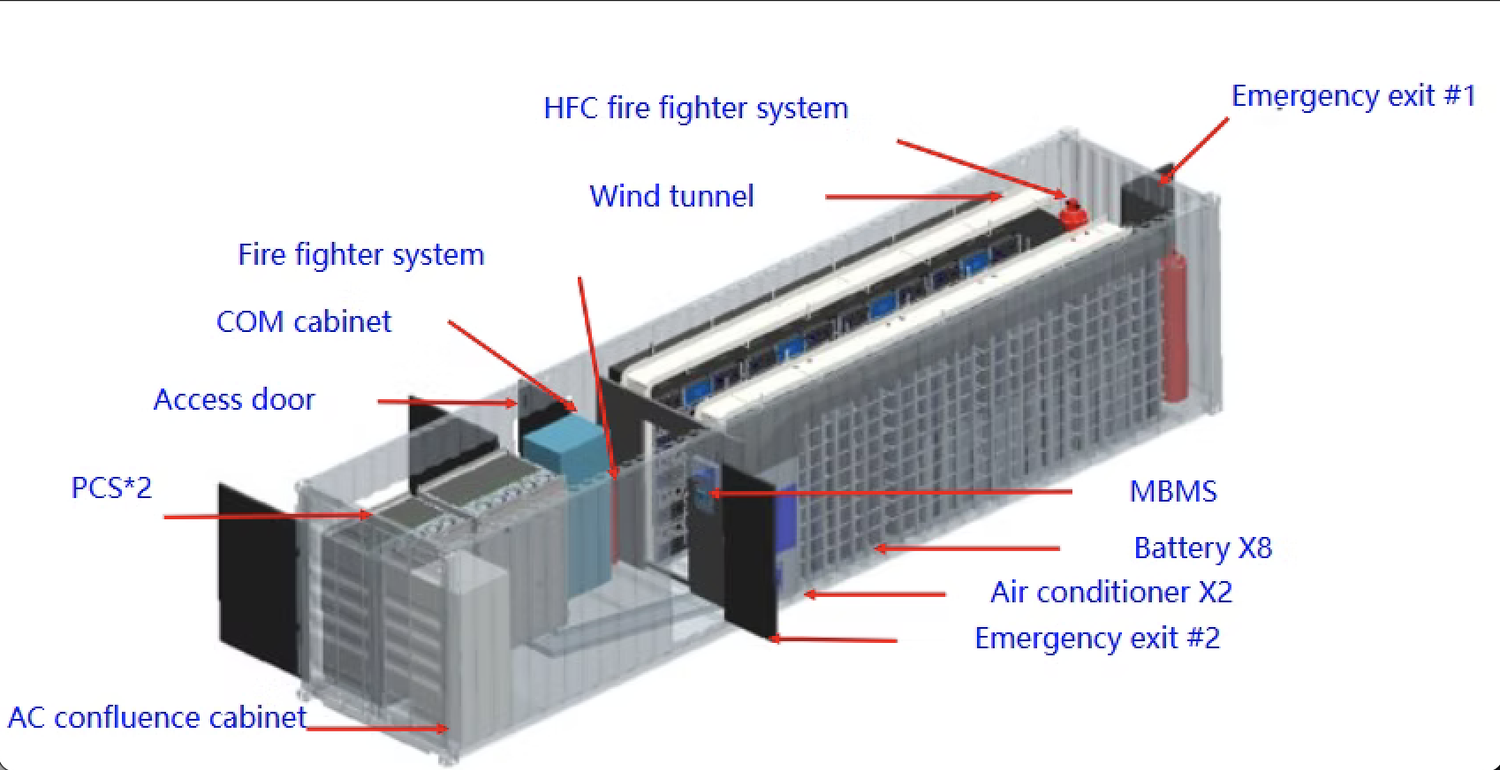

20FT containerized system with integrated battery rooms and electrical cabinets.
Gallery
Specifications
Navvion Gamma 5.015 MWh
Product model
Y104R04C12-314
Configuration
416s12p
Rated energy
5015.9 kWh (100% DOD, 0.5P)
Rated voltage
1331.2 V
Operating voltage
1040-1500 V
Dimensions
6058 x 2438 x 2896 mm (20HQ)
Mass
~44,500 kg
Charge method
0.5P to 3.55V, then 0.1P to 3.65V
Discharge method
0.5P to 2.5V
Rated charge power
2500 kW (0.5P)
Rated discharge power
2500 kW (0.5P)
Max continuous discharge
2500 kW
Short overload power
5000 kW @ 60s
Short circuit current
130.56 kA @ 12 rack
Operating temp
-30 to 55 C
IP level
Bat IP55 / Electric IP55 / Chiller IP55
Efficiency
>=93.7% @0.5P, >=95.2% @0.25P
Insulation
>=1000 ohm/V, test 2500 VDC
Withstand voltage
4500 VDC, leakage <=5mA
Cooling/heating
Liquid cooling / heating
Refrigerating power
60 kW @ 35 C, 55 kW @ 45 C
Heating power
27 kW
Aux power supply
22.8-33.6 kW @0.5P; 8.1-12.5 kW @0.25P
Communications
CAN, RS485, TCP/IP
